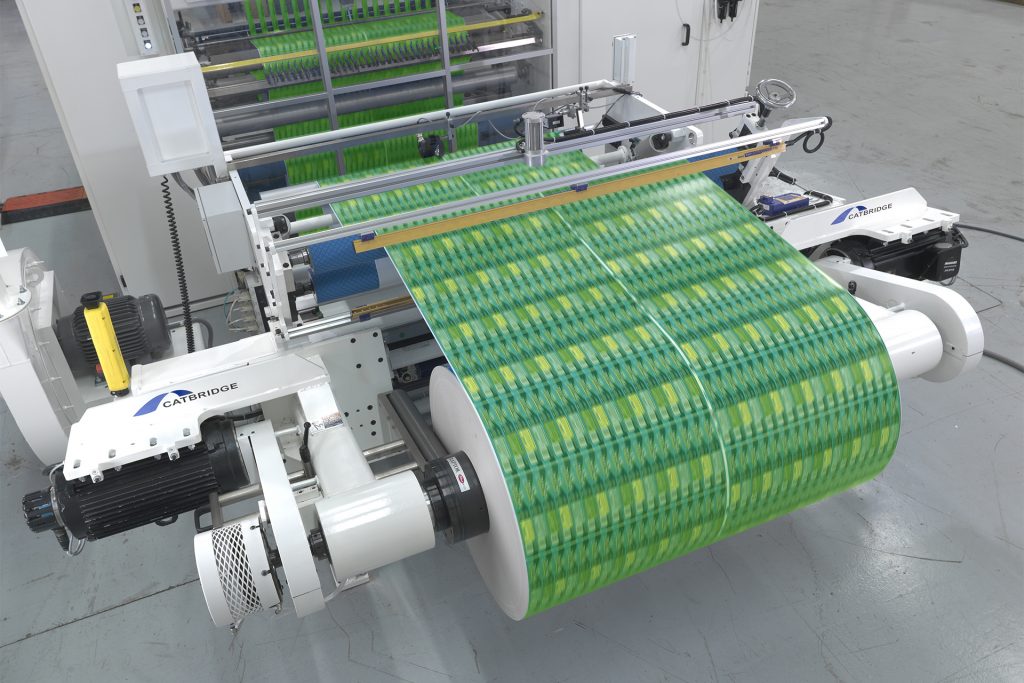

Model 685 Shaftless Floor Pickup Unwind With Infeed

The Model 685 is a midsize, shaftless floor pickup unwind stand for use in almost any process. This unwind provides accurate, reliable performance for a broad variety of substrates. Some common features and options are listed below.

General Specifications

Roll diameter: 50” (1270 mm)
Roll weight: 5000 lbs. (2268 kg)

Standard Features
  • Shaftless floor pickup roll loading
  • Pneumatic brakes
  • Torque activated chucks and adapters
  • Diameter-based tension control
  • Edge guide
Optional Features
  • Motor driven unwind
  • Pneumatic mechanical chucks and adapters
  • Dancer assembly
  • Infeed section
  • Closed-loop tension control
  • Line guide
  • Wide-array sensor
  • Anti-telescoping rollers
  • Peel-off roll
  • Splice table
  • Liner/scrap winder
Common Applications
  • Airlaid nonwovens
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Metallized films
  • Metallized papers
  • Office roll products
  • Paper to film laminations
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Primary films
  • Rubber laminations
  • Spunbond nonwovens
  • Thermal transfer films
  • Thermal transfer papers
