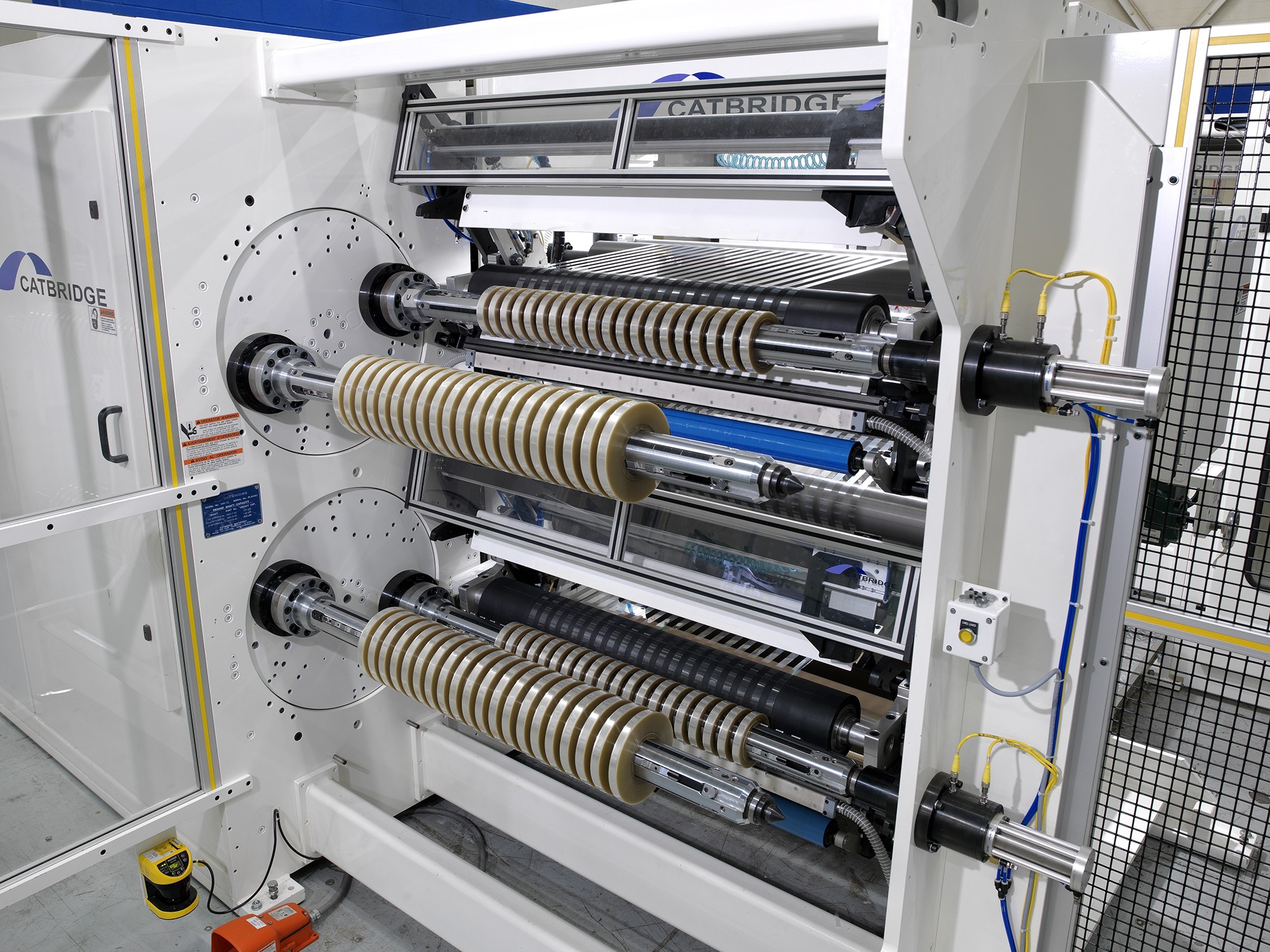

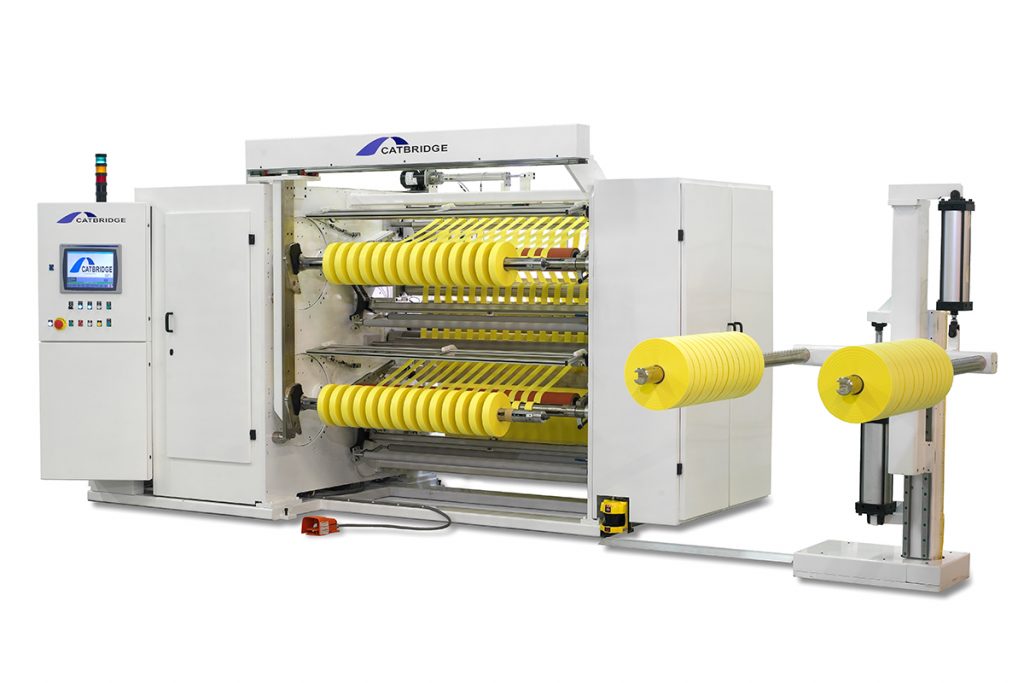

Model 344 Dual-Turret Slitter Rewinder

The 344 dual-turret center rewinder offers the latest design and technology advances to dramatically reduce downtime. This slitter rewinder model is ideal for pressure sensitive tape and other industries with short run, frequent job changes or high volume, repetitive work.

We also build the 344FP, a 344 designed specifically for flexible packaging. This flexpack turret maximizes productivity, delivering cycle times up to five times faster than conventional slitter cycle times.

General Specifications

Rewind diameter: 18, 24, or 30” (457, 610, or 762 mm)
Web width: to 72” (1829 mm)
Web speed: to 2000 fpm (610 m/min)
Min slit width: 1/2” (13 mm)

Standard Features
  • Score, razor, and/or shear slitting
  • Cantilevered differential or lock-core rewind shafts
  • Center rewinding with lay-on roll or minimum gap control
  • Taper tension control
  • Automatic cutoff and transfer
  • Enveloper and tail tucker
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • FP package for flexpack applications
  • Driven and/or carbon-fiber rolls
  • Automatic knife positioning
  • Trim winders and removal systems
  • Auto core loading
  • Laser core positioning
  • Closed-loop rewind tension
  • Articulated rewind shaft-end support
  • Tabber
  • Roll pushers
  • Unloading tree
Common Applications
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Metallized films
  • Metallized papers
  • Paper to film laminations
  • Paper to foil laminations
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Primary films
  • Thermal transfer films
  • Thermal transfer papers
