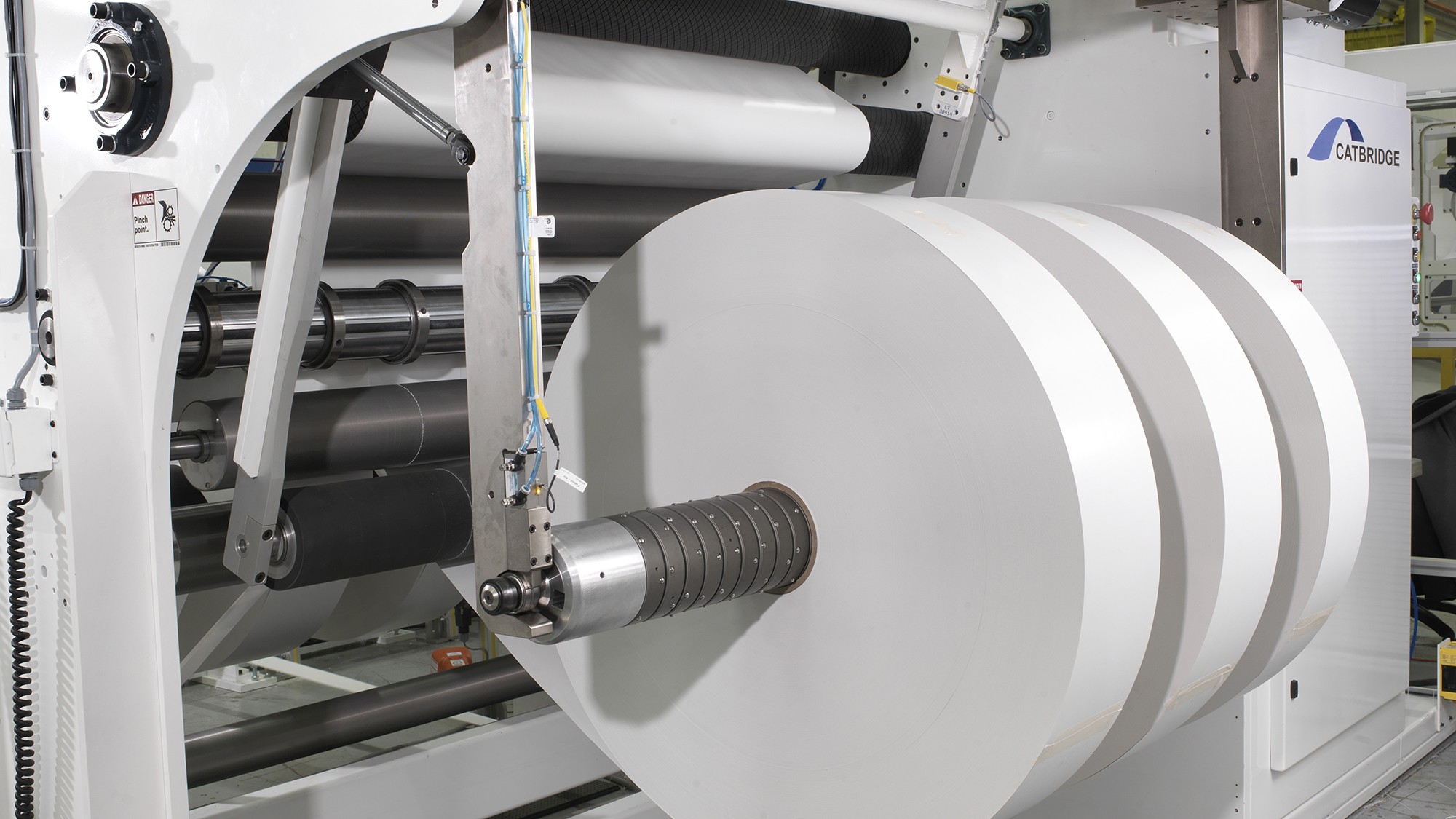

Model 525 Duplex Center Slitter Rewinder

The 525 duplex center winder produces large rolls to 50-inch diameters and features a horizontal configuration that improves ergonomics and simplifies roll discharge. Unlike vertical duplex configurations, the horizontal design has two waist-high cantilevered rewind shafts, making it easier for operators to position cores and tail tie finished rolls. Additionally, the horizontal configuration allows quick, basic finished roll discharge options such as unloading trees or carts. The 525 integrates advanced technologies that promote productivity as well as safety. It also offers a variety of options for handling specific materials.

General Specifications

Rewind diameter: 50” (1270 mm)
Web width: to 92” (2337 mm)
Web speed: to 2500 fpm (763 m/min)
Min slit width: 1” (25 mm)

Standard Features
  • Overhead web path
  • Shear, score and/or razor slitting
  • Cantilevered differential rewind shafts
  • Center rewinding
  • Automatic taper tension control
  • Roll pusher and unloading tree
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Splice tables
  • Inspection lights
  • Camera system
  • Automatic knife positioning
  • Knife wicking
  • Laser pointers for core and/or knife placement
  • Lock-core rewind shafts
  • Trim winders or vacuum system
  • Closed-loop tension control
  • Static neutralizer
  • Liner winders
  • Cross web perforating
  • Roll discharge options including trees and carts
Common Applications
  • Airlaid nonwovens
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Meltblown nonwovens
  • Metallized films
  • Metallized papers
  • Paper to film laminations
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Primary films
  • Spunbond nonwovens
  • Thermal transfer films
  • Thermal transfer papers
