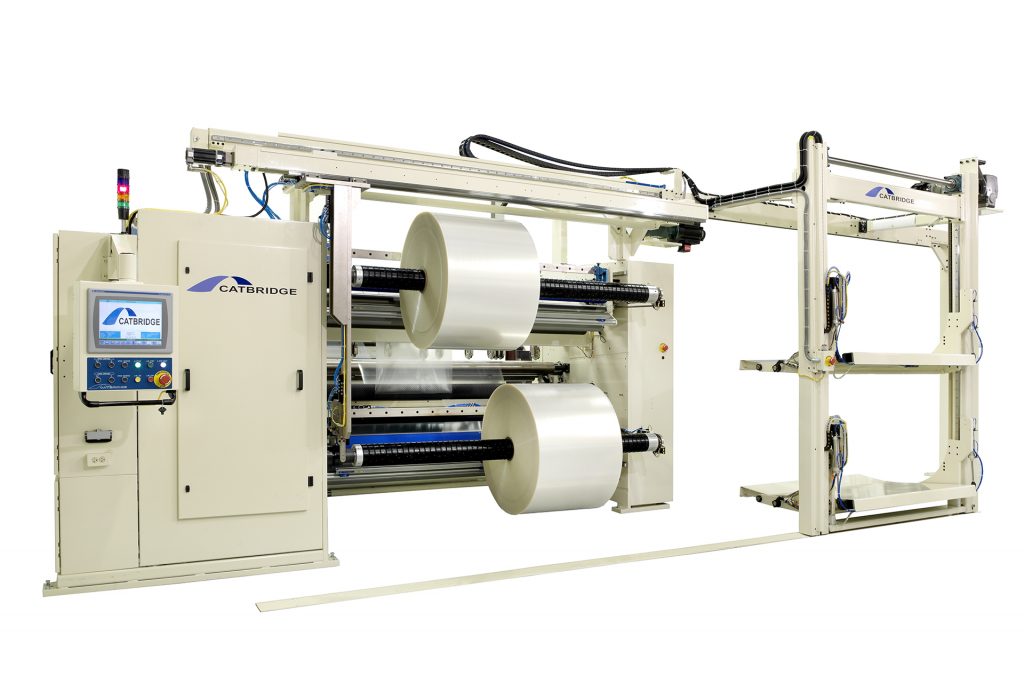

Model 901 Duplex Center Slitter Rewinder

The 901 duplex center winder offers a variety of capabilities and options to maximize production throughput. This slitter rewinder is ideal for flexible packaging materials, laminations, and other coated and uncoated substrates.

The heavy-duty version of this machine, the 901-42, rewinds finished rolls to a large 42-inch diameter. It’s available with a patented tray unloading system that minimizes downtime.

General Specifications

Rewind diameter: 31.5 or 42” (800 or 1067 mm)
Web width: to 84” (2137 mm)
Web speed: to 2500 fpm (763 m/min)
Min slit width: 2” (51 mm)

Standard Features
  • Shear and/or razor slitting
  • Cantilevered differential or lock-core rewind shafts
  • Center rewinding with lay-on or minimum gap control
  • Closed-loop tension control
  • Roll pusher
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Overhead web path
  • Splice tables
  • Automatic knife positioning
  • Laser core placement
  • Trim winders
  • Spreader roll
  • Static neutralizer
  • Lift-out shafts
  • Pin or cross-web perforation
  • Unloading tree
  • Tray unloader for large rolls
Common Applications
  • Airlaid nonwovens
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Meltblown nonwovens
  • Metallized films
  • Metallized papers
  • Paper to film laminations
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Primary films
  • Spunbond nonwovens
  • Thermal transfer films
  • Thermal transfer papers
