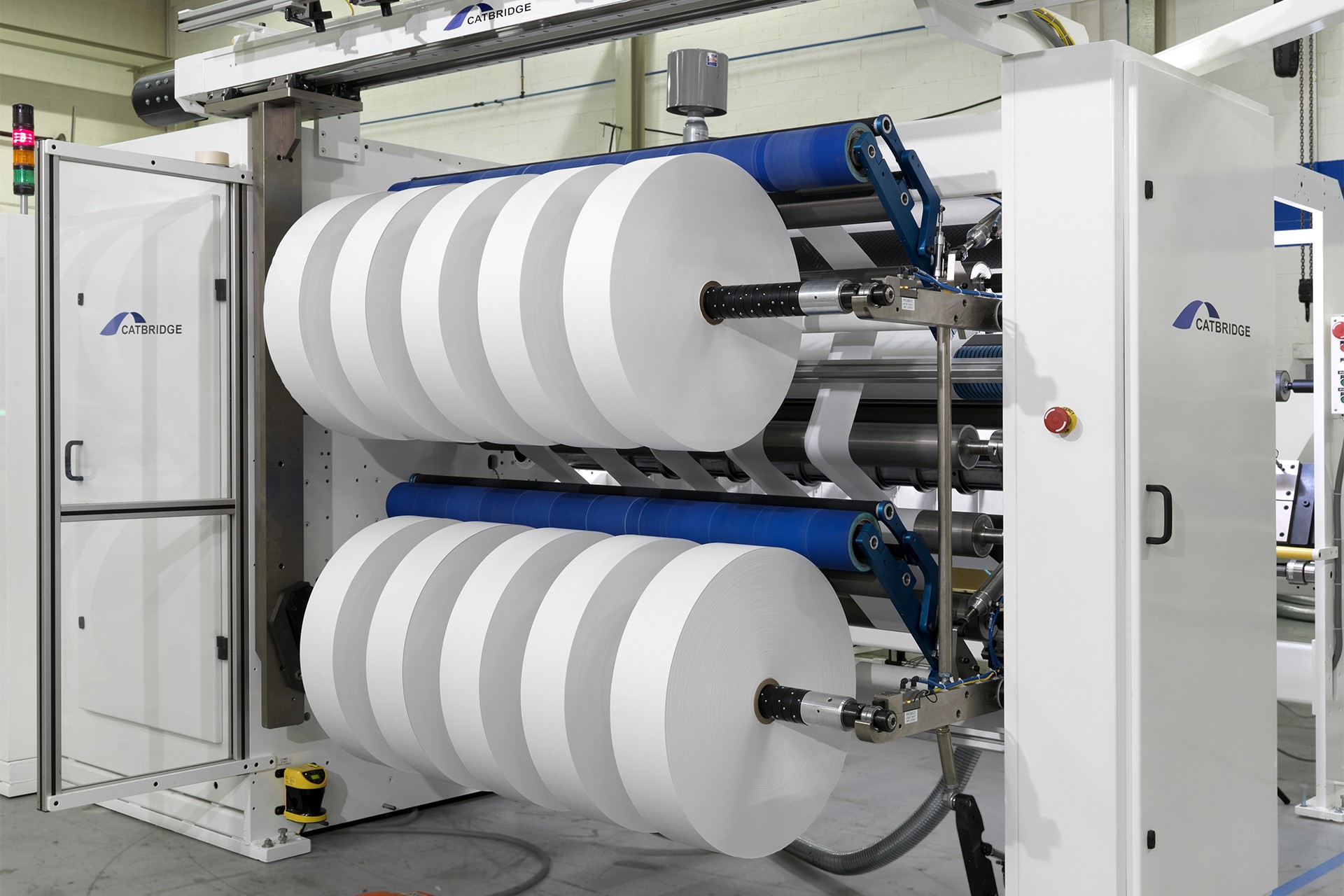

Model 900MC Duplex Center Slitter Rewinder

The innovative 900MC combines the capabilities of a duplex center winder with the productivity gains of a turret. The 900MC can rewind to a 32” diameter (or 40” with optional lower lift-out feature) and handle materials including paper, primary films, flexible packaging laminations, pressure sensitives, and label stock. To significantly reduce downtime between sets, this duplex center winder uses auto tabbing and auto cut and transfer technologies. Cutoff is done close to the rewind point, producing short strands that can be precisely controlled for roll alignment. Additionally, this machine offers proven technologies that increase production including auto knife positioning and auto core loading. For ease of use, the 900MC provides an advanced yet intuitive control system and an ergonomically-friendly design.

General Specifications

Rewind diameter: 32” (813 mm)
Web width: to 84” (2137 mm)
Web speed: to 2500 fpm (763 m/min)
Min slit width: 1” (25 mm)

Standard Features
  • Shafted or shaftless unwind
  • Center rewinding on cantilevered, differential shafts
  • Shear, score and/or razor slitting
  • Automatic cutoff and transfer
  • Automatic taper tension control
  • Roll pusher and unload tree
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Driven or turret unwind
  • Splice tables
  • Camera system
  • Scrap winder
  • Plasma coated idlers
  • Automatic knife positioning
  • Trim winders
  • First and/or last wrap tabbing
  • Automatic core loading
  • Laser core positioning
  • Static neutralizer
  • Closed-loop tension control
  • Lower lift-out shaft with 40” rewind diameter
  • Lock-core shafts
  • Touch rolls
  • Various unloading systems
Common Applications
  • Films
  • Label stock
  • Papers, coated and uncoated
  • Flexible packaging laminations
  • Pressure sensitive tapes and foams
