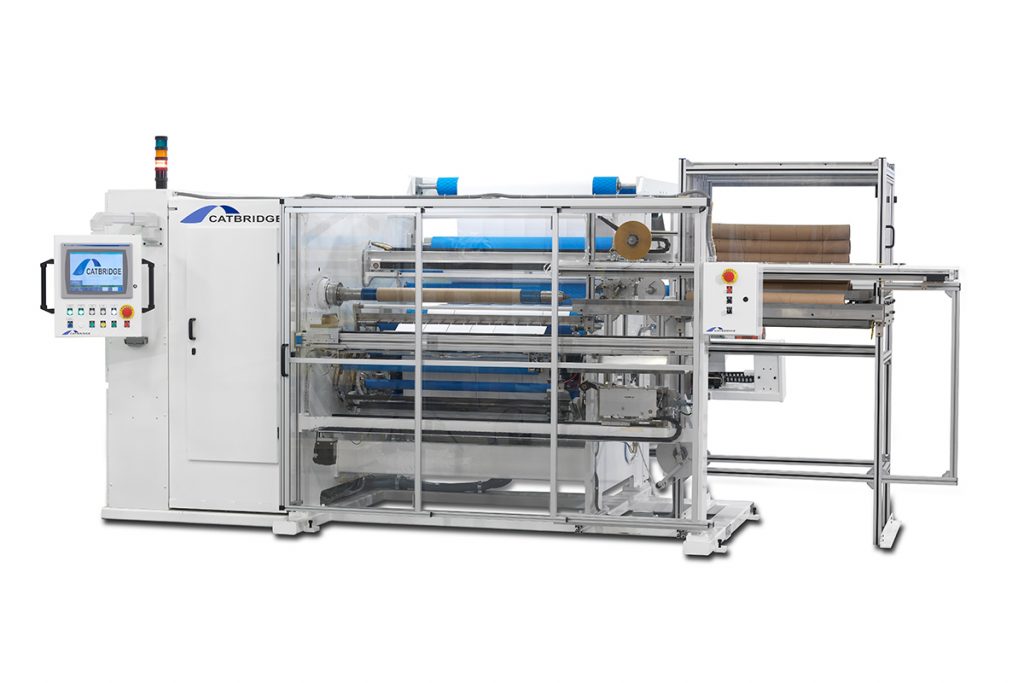

Model 334 Fully Automatic Turret Slitter Rewinder

The fully-automatic 334 turret has a single turret head with three cantilevered shafts: one for core loading, one for winding, and one for finished roll stripping. This multi-tasking design provides significant time savings. For further time savings, the 334’s cutoff and transfer system automatically attaches tails to new cores and seals finished rolls. This machine can also be equipped with features such as a printer and applicator for labels. The 334 slits and rewinds small-diameter rolls of materials including paper, film, and tape. With rapid cycle times and fast changeovers, this turret winder is ideal for repetitive jobs and short sets.

General Specifications

Rewind diameter: 12” (305 mm)
Web width: to 72” + (1829 mm +)
Web speed: to 1500 fpm (457 m/min)
Min slit width: 2” (51 mm)

Standard Features
  • Shear and/or razor slitting
  • Cantilevered lock-core rewind shafts
  • Center rewinding with lay-on roll or minimum gap control
  • Taper tension control
  • Automatic cutoff and transfer
  • Enveloper and tail tucker
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Overhead web path
  • Auto knife positioning
  • Trim systems
  • Spreader roll
  • Closed-loop tension control
  • Auto core loading
  • Coreless winding
  • Tabber
  • Finished roll taping
  • Label printing and application
  • Hole punch
  • Roll pusher
  • Discharge tray
Common Applications
  • Counter rolls
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Metallized films
  • Metallized papers
  • Paper packaging tape
  • Paper to film laminations
  • Paper to foil laminations
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Primary films
  • Thermal transfer films
  • Thermal transfer papers
