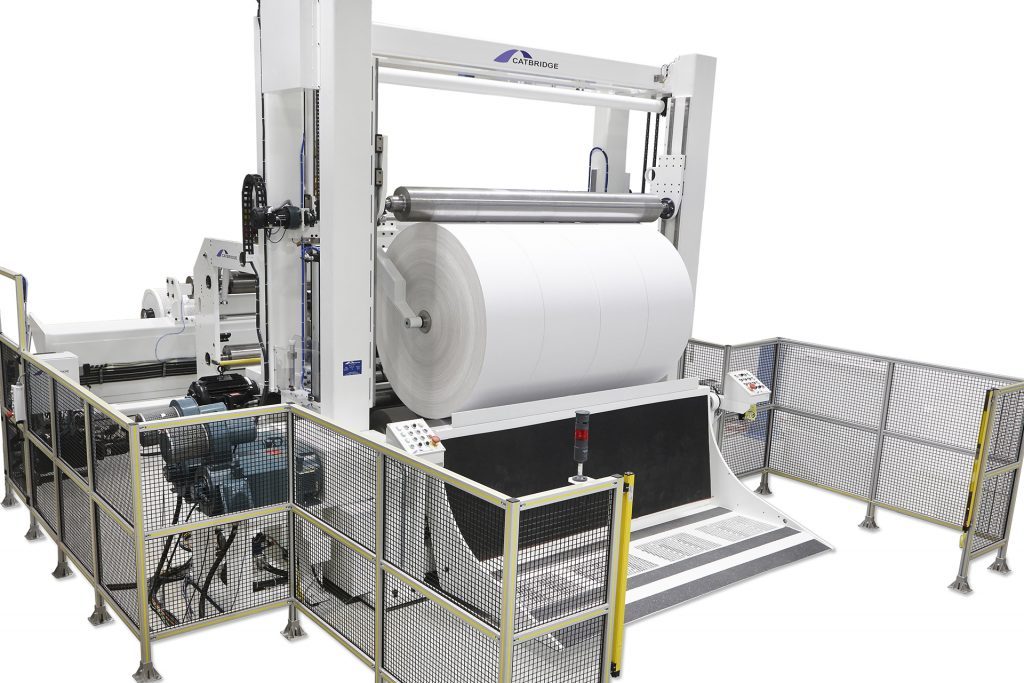

Model 220 Two-Drum Surface Winder

This next-generation surface winder provides unparalleled versatility, speed, precision, and safety. Designed for paper mills and converters, the robustly-constructed 220 runs at speeds to 6000 fpm and rewinds to a 72” diameter. An innovative shaftless rewind technology, combined with an extremely wide tension range, allows this two-drum winder to handle many material types, thicknesses, and widths. The 220 is also capable of shafted rewinding. Additional features provide accurate slitting and web control, efficient operations, and industry-leading safety.

General Specifications

Rewind diameter: 72” (1829 mm)
Web width: to 150” + (3810 mm +)
Web speed: to 6000 fpm (1829 m/min)
Min slit width: 3” (76 mm)

Standard Features
  • Overhead web path
  • Shear slitting
  • Single or dual bowed rolls
  • Programmable profile drum torque
  • Pneumatic riding roll
  • Vibration dampening system
  • Web threading assist
  • Shaftless rewind
  • Roll ejector
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Splice table
  • Two-up assembly to unwind two independent rolls simultaneously
  • Automatic knife positioning
  • Trim system
  • Dust collection system
  • Laser core-placement assist
  • Rewind shafts
  • J-table or freestanding roll discharge table
Common Applications
  • Board, coated and uncoated
  • Papers, coated and uncoated
  • Tissue
  • Toweling
