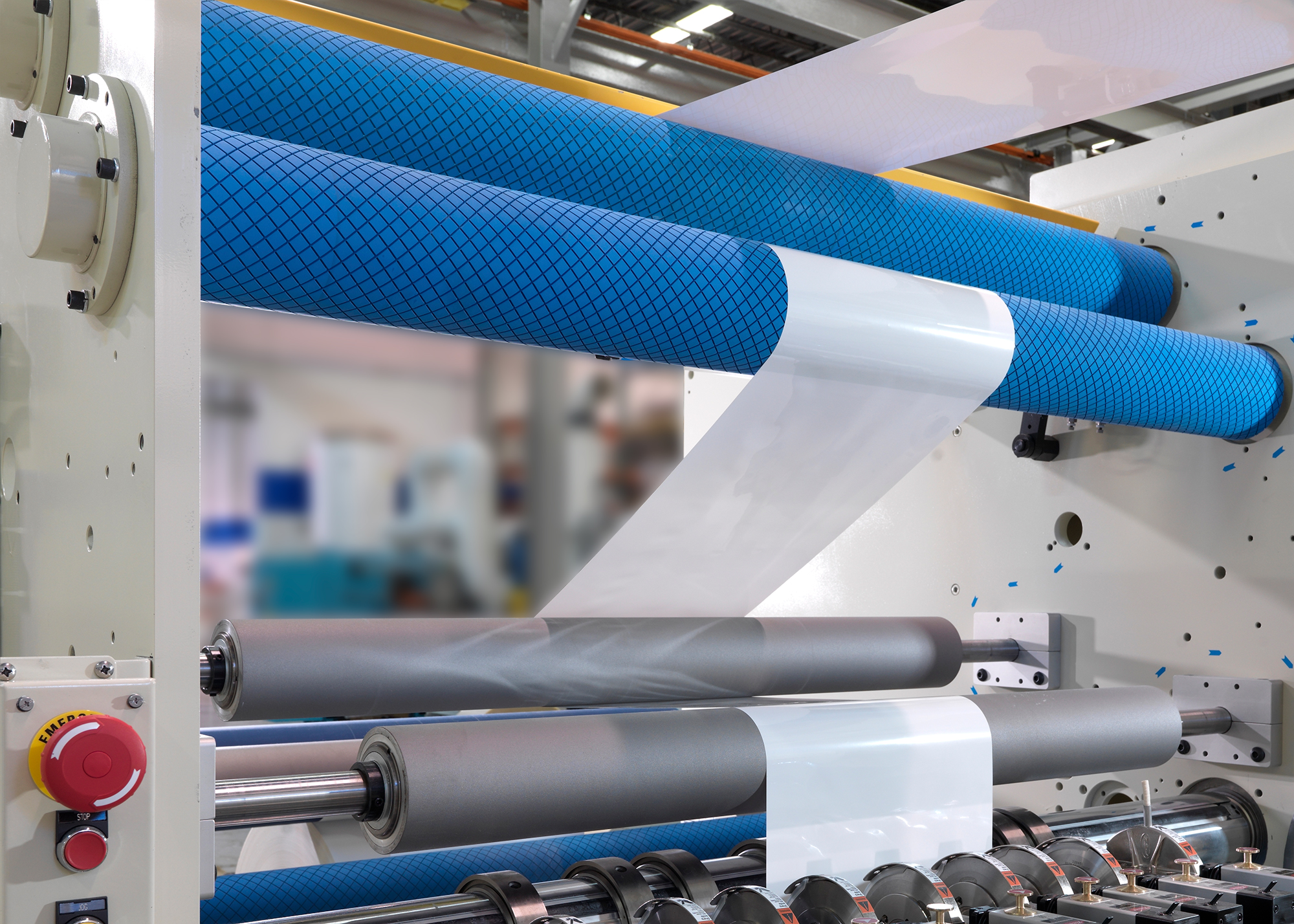

Model 140 Salvage Winder

The Model 140 high-speed salvage slitter rewinder provides an effective solution for reworking otherwise unshippable rolls off large slitters. This machine handles rolls up to 50″ in diameter on the unwind and rewind and runs very narrow to very wide widths of material. With its slitting capabilities, the 140 can also be used as a conventional production slitter. Other capabilities include splicing, inspection, bidirectional winding, automatic tension control, speeds to 2500 fpm, and easy roll loading and unloading. Applications for the 140 include label stock and materials ranging from lightweight sensitive films to heavy paper laminates. This versatile salvage winder not only reduces waste, it also eliminates the need to rework rolls on primary machines, saving valuable production time.

General Specifications

Rewind diameter: 50” (1270 mm)
Web width: to 84” (2137 mm)
Web speed: to 2,500 fpm (763 m/min)

Standard Features
  • Overhead web path
  • Center rewind with touch roll
  • Lock-core winding
  • Lift-out shafts
  • Closed or open loop tension
  • Automatic taper tension control
  • Shear, score or razor slitting (or combinations of all three)
  • Safety PLC and safety devices
  • Advanced CBM1 control system with user-friendly interface, recipe control, programmable tension and density, data logging and remote support
Optional Features
  • Splice tables
  • Inspection lights
  • Cantilevered rewind
  • Differential rewind shafts
  • Automatic knife positioning
  • Laser-assisted core positioning
  • Trim winders or vacuum trim removal
Common Applications
  • Filters
  • Wipes
  • Airlaid nonwovens
  • Board, coated and uncoated
  • Film to film laminations
  • Label stock
  • Meltblown nonwovens
  • Metallized films
  • Metallized papers
  • Paper to film laminations
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Rubber laminations
  • Spunbond nonwovens
  • Thermal transfer papers
  • Tissue
  • Toweling
