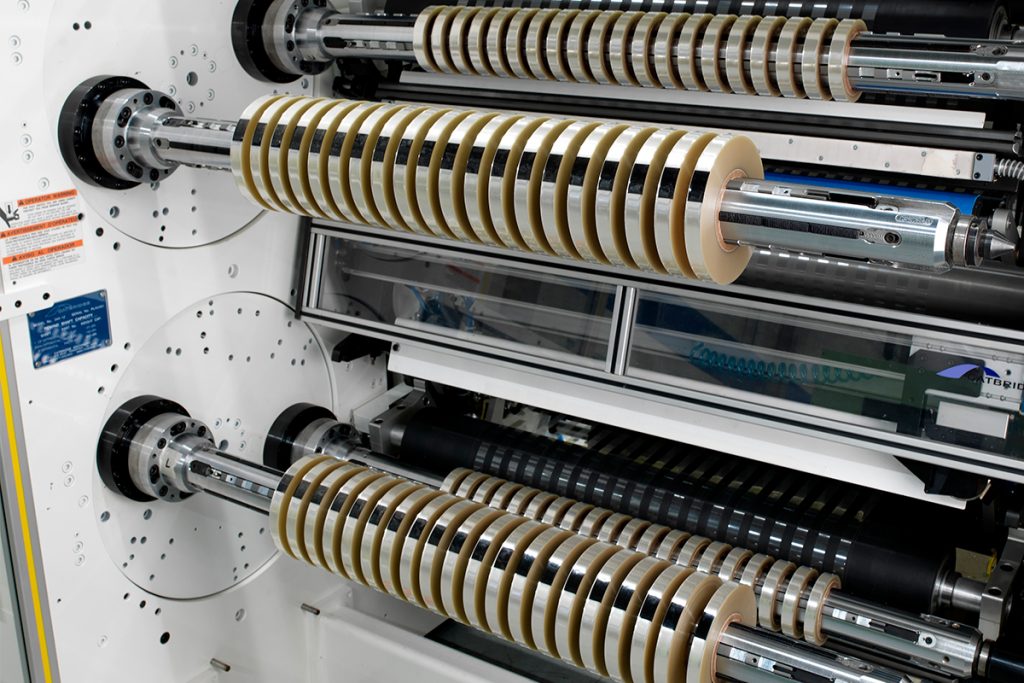

Model 344MC Dual-Turret Slitter Rewinder

Perfect for high-volume, demanding applications, the 344MC dual-turret winder slashes downtime and delivers outstanding roll quality. This machine can slit to narrow 3/8” widths and rewind up to 18” diameters. Innovative technologies accurately control roll density as well as strand alignment at the first and last wrap. To handle high-value products, the 344MC offers open web tabbing to minimize waste. The tabber can also provide roll leaders or pull tabs. A unique shaft discharge position reduces operator bending and reaching for better ergonomics. For time savings, available features include automatic knife positioning, core loading, and finished roll discharge. Common 344MC applications include laminations and tapes, including reflective and abrasive tapes.

General Specifications

Rewind diameter: 12 or 18” (305 or 457 mm)
Web width: to 72” (1829 mm)
Web speed: to 2500 fpm (763 m/min)
Min slit width: 3/8” (10 mm)

Standard Features
  • Shear, score and/or razor slitting
  • Cantilevered differential or lock-core rewind shafts
  • Center rewinding with lay-on roll or minimum gap control
  • Taper tension control
  • Automatic cutoff and transfer
  • Enveloper and tail tucker
  • Canted shaft discharge position for better ergonomics
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Larger web widths
  • Overhead web path
  • Sound enclosure
  • Camera system
  • Automatic knife positioning
  • Spreader roll
  • Traversing trim winders
  • Static neutralizer
  • Closed-loop tension control
  • Laser core alignment
  • Auto core loading
  • Tabber or hot melt adhesive applicator
  • Roll leader or pull tab insertion
  • Label printing and application
  • Roll pusher to unloading tree or conveyor
Common Applications
  • Abrasive tapes
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Metallized films
  • Paper to film laminations
  • Paper to foil laminations
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Primary films
