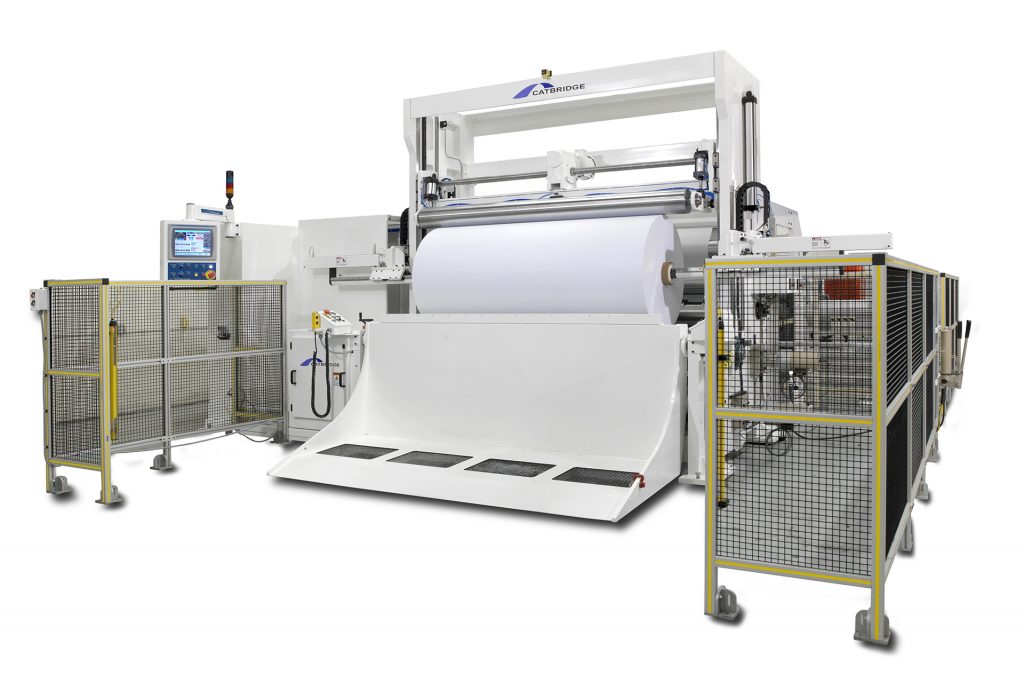

Model 215 Two-Drum Surface Winder

The heavy-duty Model 215 two-drum surface winder significantly increases productivity and safety. Time saving features shorten production cycles, allowing more jumbo rolls to be processed per shift. These features include a rugged shaftless floor pickup unwind, auto knife positioning, web threading and core placement assists, an innovative shaftless rewind technology, and a streamlined finished-roll discharge process. Additionally, the 215 provides a state-of-the-art, comprehensive safety system with a safety PLC and safety devices such as guards and sensors.

The 215 surface winder handles materials ranging from very heavy to very lightweight. This machine rewinds to a 60” or optional 80” diameter and is also capable of shafted or coreless rewinding. Precise tension and slit web control systems help produce top-quality finished rolls.

General Specifications

Rewind diameter: 60 or 80” (1524 or 2032 mm)
Web width: to 120” + (3048 mm +)
Web speed: to 4000 fpm (1219 m/min)
Min slit width: 2” (51 mm)

Standard Features
  • Overhead web path
  • Shear slitting
  • Single or dual bowed rolls
  • Programmable profile drum torque
  • Pneumatic riding roll
  • Web threading assist
  • Shaftless rewind
  • Roll ejector
  • CBM-1 control system with user-friendly interface for operations, maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Splice table
  • Two-up assembly to unwind two independent rolls simultaneously
  • Score slitting
  • Automatic knife positioning
  • Trim system
  • Dust collection system
  • Laser core-placement assist
  • Rewind shafts
Common Applications
  • Wipes
  • Airlaid nonwovens
  • Board, coated and uncoated
  • Label stock
  • Meltblown nonwovens
  • Metallized papers
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Spunbond nonwovens
  • Tissue
  • Toweling
