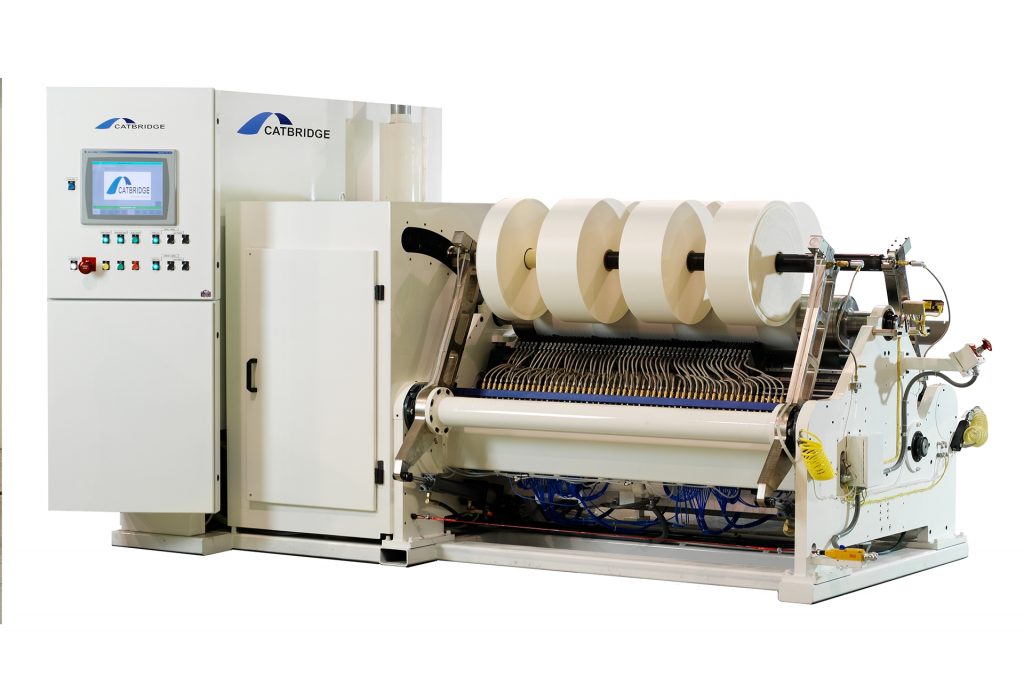

Model 550 Duplex Center/Surface Slitter Rewinder

A heavy-duty duplex center / surface winder for center, center surface, or center minimum gap winding. This exceptionally versatile slitter rewinder is used for a broad variety of coated and uncoated materials. The 550 is capable of center winding to a 40” diameter and center-surface winding to a 50” diameter.

General Specifications

Rewind diameter: 40 or 50” (1016 or 1270 mm)
Web width: to 62”+ (1575 mm +)
Web speed: to 2000 fpm (610 m/min)
Min slit width: 1/2” (13 mm)

Standard Features
  • Lift-out rewind shafts
  • Score, shear, razor, burst or hot knife slitting
  • Center surface and center wind with minimum gap modes
  • Automatic taper tension control
  • CBM-1 control system with user-friendly interface for operations,maintenance, and safety
  • Safety PLC and safety devices including fencing and sensors
Optional Features
  • Semi-automatic knife positioning
  • Automatic knife positioning
  • Bowed roll
  • Trim removal systems
  • Differential shafts
  • Touch roll assembly
Common Applications
  • Board, coated and uncoated
  • Film to film laminations
  • Foil, supported and unsupported
  • Label stock
  • Metallized papers
  • Paper to film laminations
  • Paper to foil laminations
  • Papers, coated and uncoated
  • Pressure sensitive films
  • Pressure sensitive tapes
  • Rubber laminations
